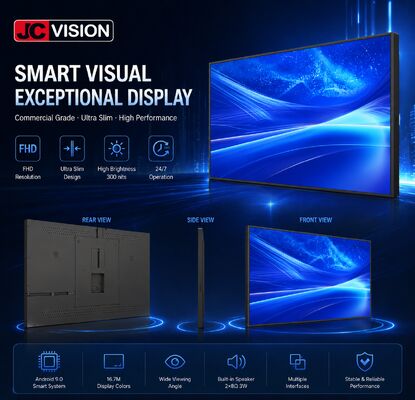

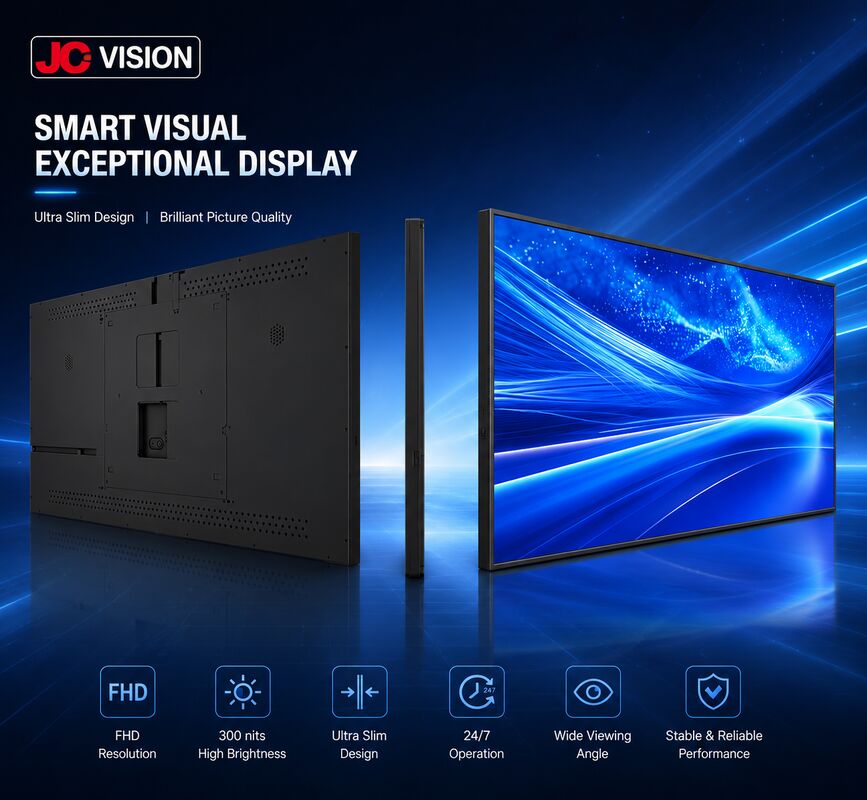

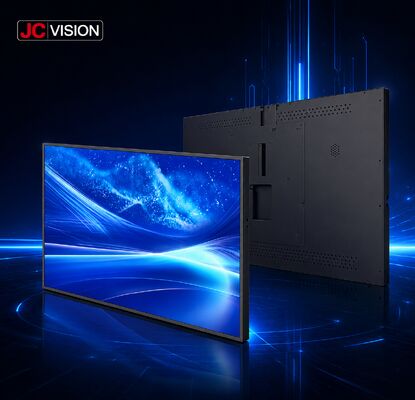

JCVision 32-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | JCVision |
| Sertifikasi: | CE ROHS |
| Nomor model: | JC-32ILB |
| Dokumen: | JCVision 32-inch Light Box ....pdf |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | 600 |
| Kemasan rincian: | Kotak Karton |
| Waktu pengiriman: | 5-8 hari kerja |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 50 |
|
Informasi Detail |
|||
| Merek: | JCVISION | Model: | HD-352C |
|---|---|---|---|
| Nama Produk: | Kotak Lampu Dinding 32" (Tepi Persegi | Ukuran Layar: | 32 inci |
| Jenis Lampu Latar: | E-LED | Resolusi: | 3840 × 2160 (4K UHD) |
| Rasio Aspek: | 16:9 | Sudut Pandang: | 89° / 89° / 89° (Kiri/Kanan/U/T) |
| Warna Tampilan: | 16,7 juta | Kecerahan: | 300 ± 20 cd/m² |
| Rasio Kontras: | 1200:1 | Waktu Respons: | 6 mdtk |
| Area tampilan aktif: | 698,40 × 392,85 mm (T × V) | chipset: | Hisilicon Hi3751V352F Quad-Core, hingga 1,0GHz |
| GPU: | Mali-450MP2 | Sistem Operasi: | Android 9.0 |
| RAM: | 2 GB | Penyimpanan: | 32 GB |
| Resolusi penguraian kode: | Hingga 4K @ 60Hz | Rotasi gambar: | Panduan 0° / 90° / 180° / 270° |
| Port Usb: | 2 × USB | HDMI: | 1 × HDMI Masuk |
| antarmuka LVDS: | 1 × LVDS (saluran tunggal/ganda, 6/8-bit), mendukung 3.3V/5V/12V | Ethernet: | Ethernet RJ45 100M |
| Wi-Fi: | 2.4G (802.11b/g/n) | Modul 4G: | Opsional |
| Kontrol Lampu Latar: | Dukungan 12V bawaan | Format video: | MPEG4, MPEG2, MPEG1, WMV, TS, MOV, AVI, FLV, dll. |
| Format audio: | WAV, MP3, AAC, dll. | Format Gambar: | JPEG, PNG, BMP, GIF, dll. |
| Pembicara: | 2 × 8Ω 3W | Masukan Daya: | AC 100–230V, 50/60Hz |
| Konsumsi Daya: | ≤ 120W | Berat Bersih: | 8,0 kg |
| Berat Kotor: | 10,0 Kg | Dimensi Karton: | 830×150×550mm |
| Dimensi Produk: | 725,80 × 420,30 × 29,20 mm (termasuk pemasangan di dinding) | Instalasi: | Dipasang di dinding (Lanskap / Potret) |
| Operasi: | Penggunaan Terus Menerus 24/7 | ||
| Menyoroti: | 32-inch indoor digital signage display,E-LED backlit wall mount light box,wide viewing angle signage for retail |
||
Deskripsi Produk
Product Name: JCVision 32-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Product Description:
Introducing the JCVision 32-inch Wall Light Box (Square Edge) – a compact yet powerful indoor digital signage solution perfect for retail stores, restaurants, hotels, and commercial environments where space is limited but visual impact matters.
The 32-inch E-LED backlit panel delivers 1920×1080 Full HD resolution with 300 cd/m² brightness, 1200:1 contrast ratio, and 89° ultra-wide viewing angles (L/R/U/D), ensuring clear and vibrant visuals from any direction. With a 6ms response time, it handles dynamic video content smoothly.
Powered by the Hisilicon Hi3751V352F quad-core chipset (up to 1 GHz) and Mali-450 MP2 GPU, the display runs on Android 9.0 with 2GB RAM and 32GB internal storage. It supports a wide range of video formats (MPEG4, MPEG2, WMV, MOV, AVI, etc.) and offers 1080P@60Hz video decoding.
Connectivity options include 2× USB, 1× HDMI IN, RJ45 Ethernet, and 2.4G Wi-Fi (802.11b/g/n). An optional 4G module is available for remote content management. The unit supports both horizontal and vertical wall mounting, making it ideal for digital menu boards, promotional displays, signage, and information kiosks.
Key Specifications:
-
Screen Size: 32 inch
-
Resolution: 1920×1080
-
Brightness: 300±20 cd/m²
-
Response Time: 6ms
-
OS: Android 9.0
-
RAM / Storage: 2GB / 32GB
-
Power: ≤120W
-
Dimensions (with wall mount): 725.80 × 420.30 × 29.20 mm
-
Weight: 8.0 kg (net)
